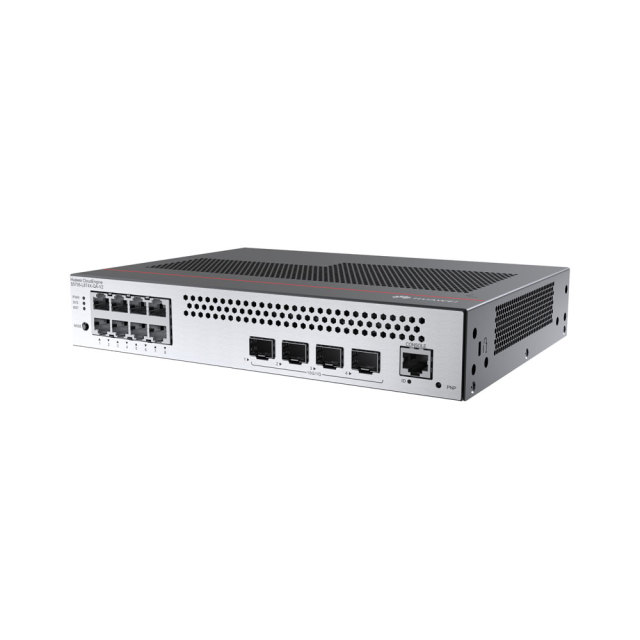

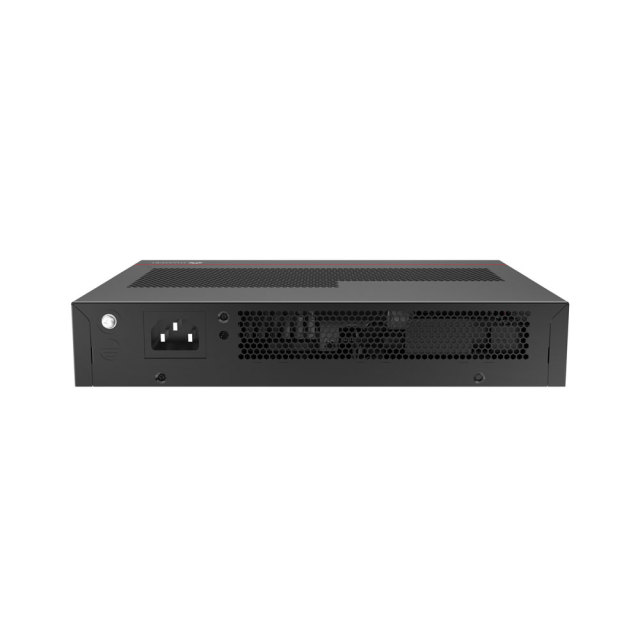

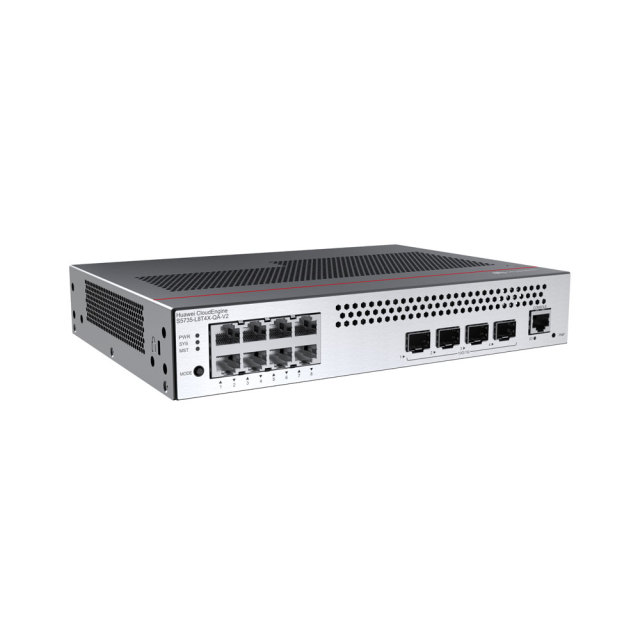

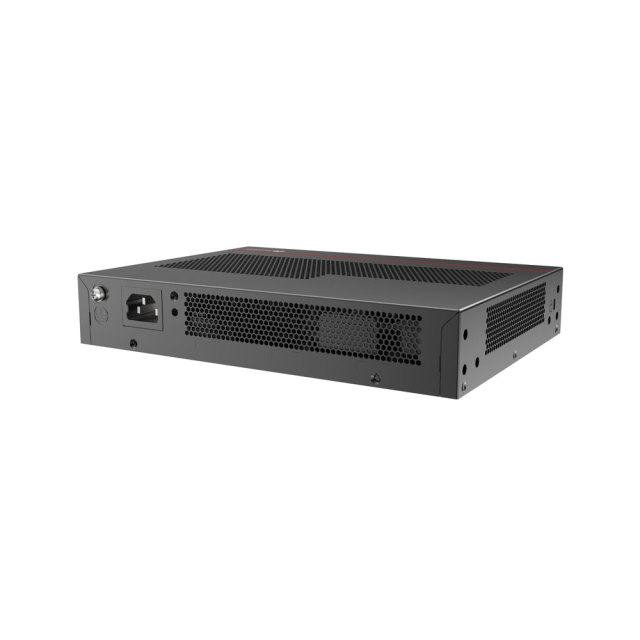

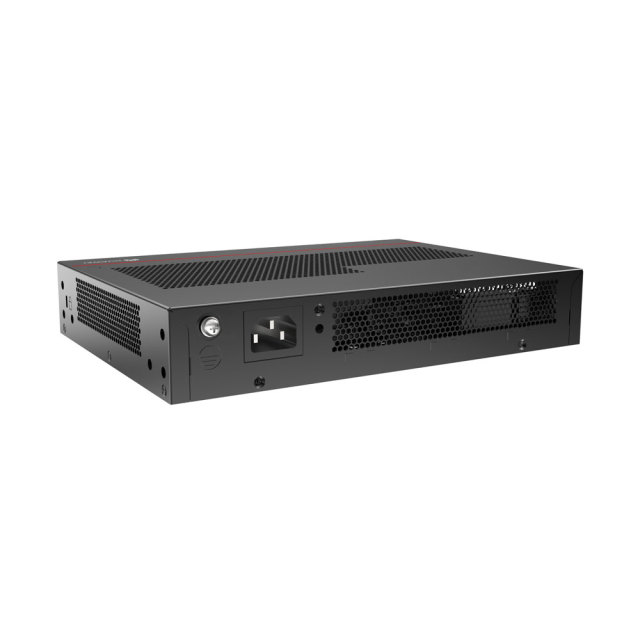

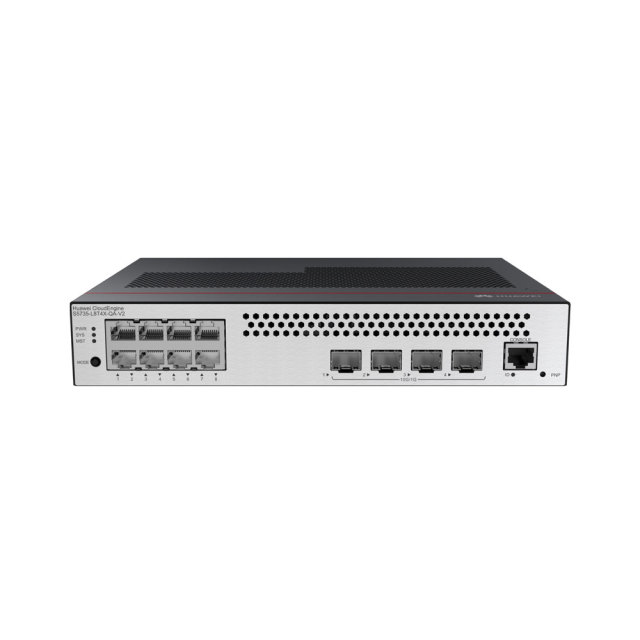

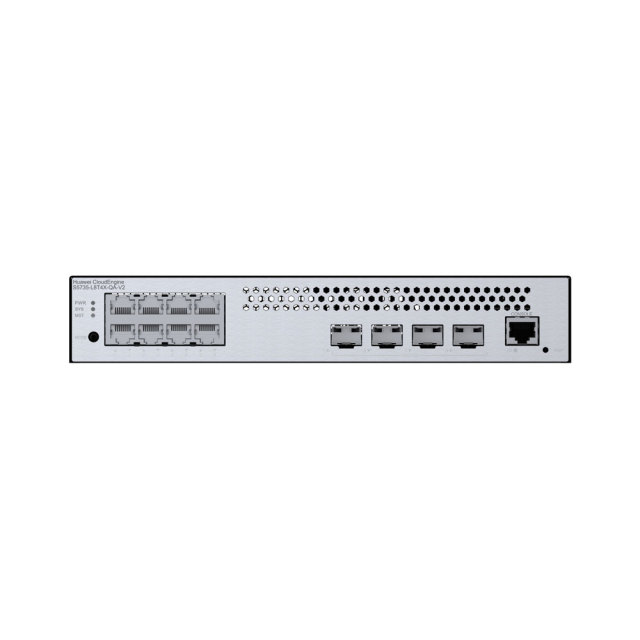

Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L8T4X-QA-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M. These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities.
The whole series of CloudEngine S5735-L8T4X-QA-V2 switches are noise-free and energy-saving thanks to their fanless design, making them ideal for various industries, such as healthcare, retail, mining, and Internet.
| Specification of S5735-L8T4X-QA-V2 | |
| Ports | 8 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 250 mm x 180 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 2.21 kg |
| Console port (RJ45) | Supported |
| USB Port | NA |
| CPU Frequency | 1.1 GHz |
| CPU Core | 2 |
| Memory (DRAM) | 2 GB |
| IP level | IP20 |
| Power supply type | Built-in AC power supply |
| Rated voltage range | 100V AC to 240V AC, 50/60 Hz |
| Maximum voltage range | AC input: 90V AC to 290V AC, 45 Hz to 65 Hz |
| Maximum input current | 0.8 A |
| Maximum power consumption of the device | 16.97 W |
| Power consumption in the case of 30% traffic load | 16.2 W |
| Power consumption in the case of 100% traffic load | 16.54 W |
| Power consumption in the case of 0% traffic load | 10.05 W |
| Heat dissipation mode | Natural heat dissipation |
| Number of fan modules | 0 |
| Airflow | Air intake from left and front, air exhaustion from right |
| Maximum heat dissipation of the device | 57.73 |
| Long-term operating temperature |
|
| Short-term operating temperature |
NA |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5%-95%(non-condensing) |
| Operating altitude | 5000 m |
| Noise under normal temperature (sound power) | fanless, noise-free, <30dB (A) |
| Noise under high temperature (sound power) | fanless, noise-free, <30dB (A) |
| Noise under normal temperature (sound pressure) | fanless, noise-free, <20dB (A) |
| Surge protection specification (power port) |
|
| MTBF | 76.15 |
| MTTR | 2 |
| Availability | > 0.99999 |
| Certification |
|
What is a Switch?
A switch is a device that enables communication between two or more IT devices, such as computers, servers, printers, and more. It helps devices within a network share resources, including printers, file storage, internet access, and application processing. In simple terms, a switch acts as a "traffic hub" in a network.
Key Characteristics:
Intelligent Forwarding: Unlike a basic hub, a switch intelligently directs data packets only to the intended recipient device based on MAC addresses.
Efficient Communication: This targeted data transmission reduces unnecessary traffic, enhances network performance, and improves security within the local network.
Scalability: Switches come in various sizes, from small desktop models for home/office use to large modular switches for enterprise data centers.
Common Applications:
Connecting devices within a Local Area Network (LAN)
Building enterprise networks, data centers, or home networks
Supporting resource sharing and collaborative workflows
In summary, a switch is a fundamental networking device that efficiently manages and directs data flow, ensuring smooth and reliable communication between connected devices.
Core Functions of a Switch
The primary functions of a switch include:
VLAN Segmentation – Enhances network security by isolating traffic into separate virtual networks.
Targeted Forwarding – Improves network performance by accurately identifying and forwarding data only to the intended destination device.
Traffic Control – Optimizes network reliability and stability through mechanisms like Quality of Service (QoS) and loop prevention (e.g., Spanning Tree Protocol).
Link Aggregation – Increases bandwidth and provides redundancy by combining multiple physical links into a single logical channel.
