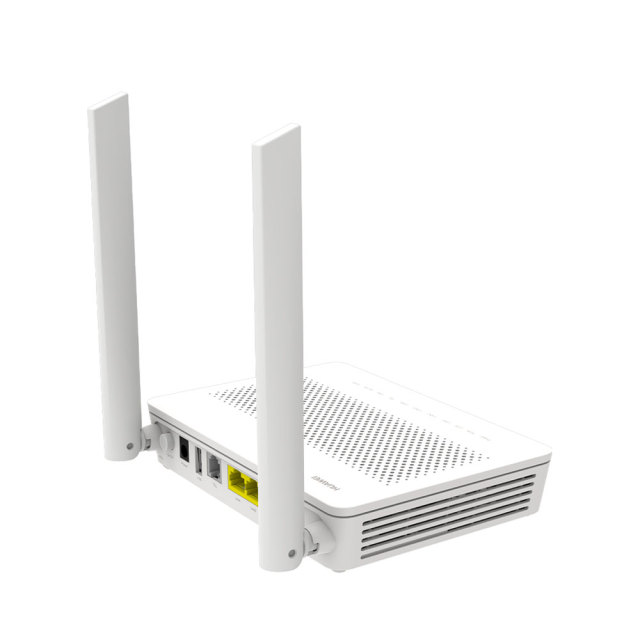

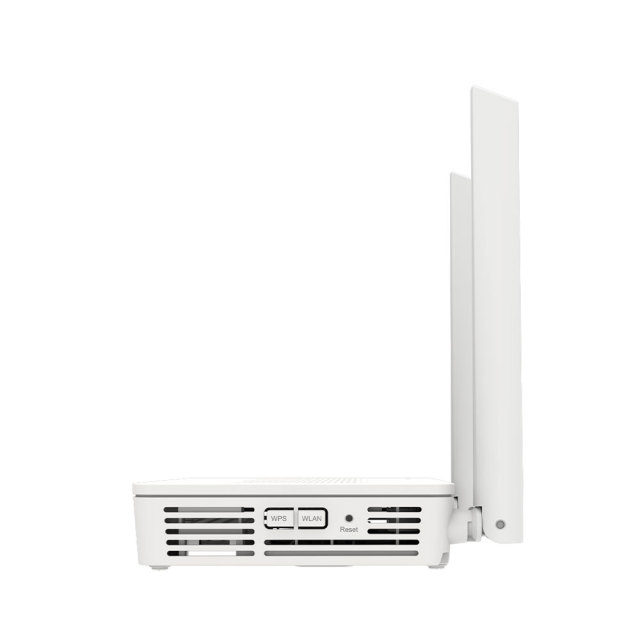

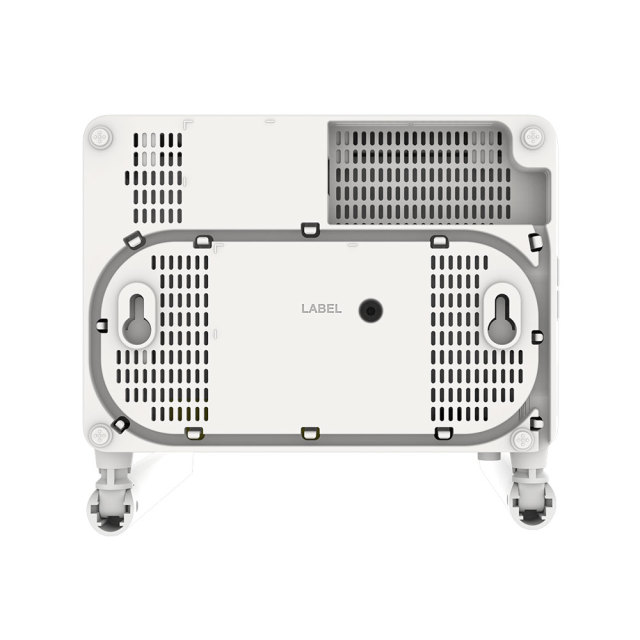

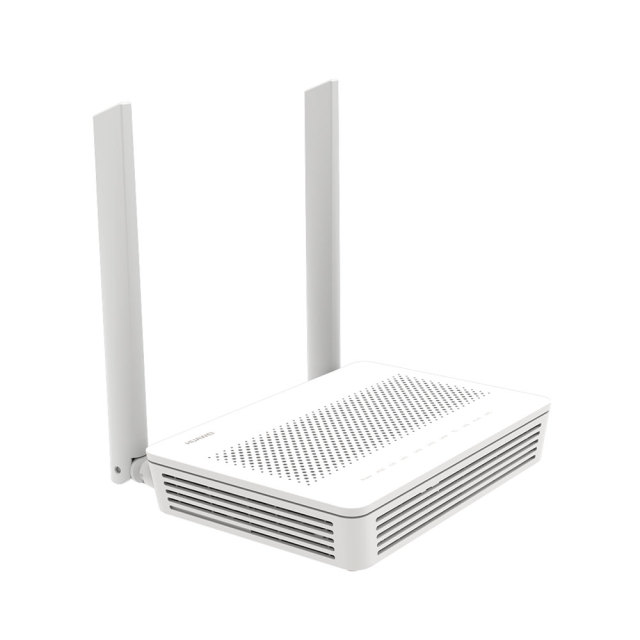

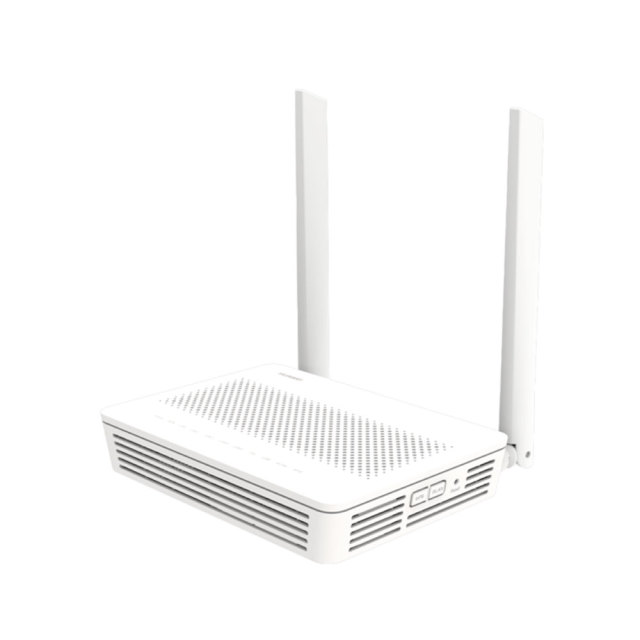

Huawei EchoLife EG8145V5, an intelligent routing-type ONT, 1POTS+4GE+2.4G/5G Wi-Fi+1USB
Model：EG8145V5
The Huawei EchoLife EG8145V5 is a routing-type ONT in the Huawei all-optical access solution. It uses the GPON technology to implement ultra-broadband access for users. The high forwarding performance ensures the user experience of voice and data services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.
| Specification of EG8145V5 | |
| Dimensions (H x W x D) (without external antenna and pads) | 30 mm x 155 mm x 105 mm |
| Weight | About 220g |
| NNI | GPON |
| Optical connector | SC/APC |

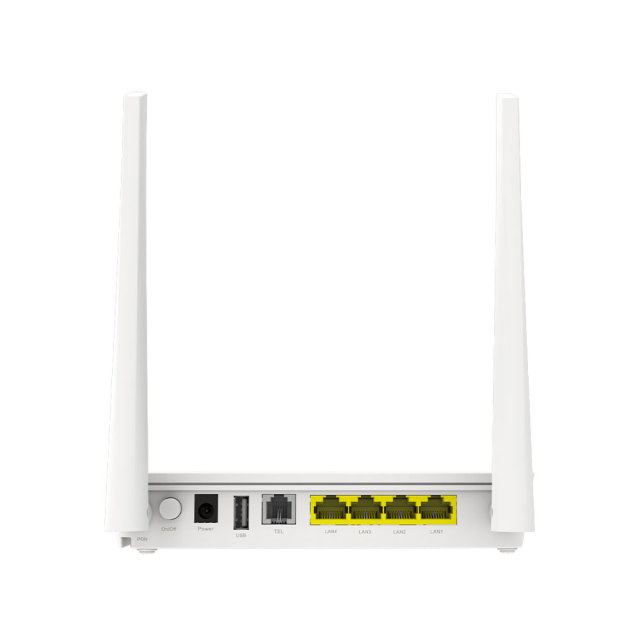

| UNI | 1POTS+4GE+2.4GHz/5GHz Wi-Fi+1USB |
| Operating temperature | 0°C to 40°C |
| Operating humidity | 5% RH to 95% RH (non-condensing) |
| Power adapter input | 100–240 V AC, 50/60 Hz |
| System power supply | 12 V DC, 1.5 A |
| Static power consumption | 5 W |
| Maximum power consumption | 12 W |

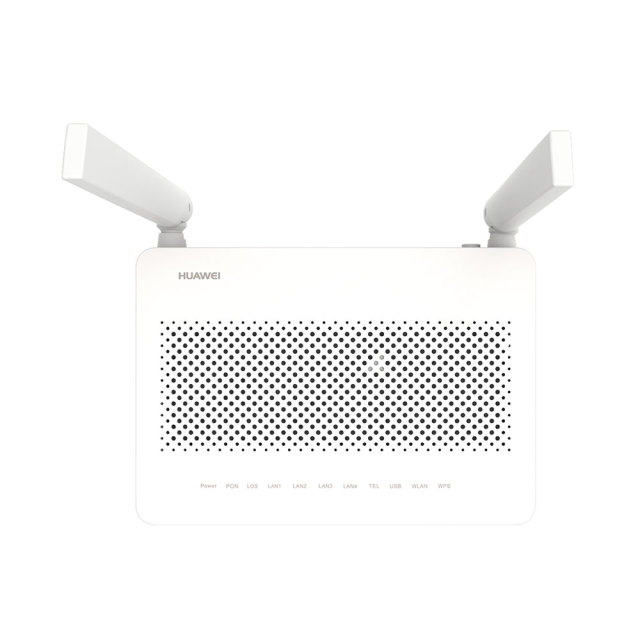

| Indicators | Power/PON/LOS/LAN1/LAN2/LAN3/LAN4/TEL/USB/WLAN/WPS |
| GPON port | • Class B+ • Receiver sensitivity: -27dBm • Overload optical power: -8 dBm • Wavelengths: US 1310 nm, DS 1490 nm • Wavelength blocking filter (WBF) of G.984.5 • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA • Type B (single-homing&dual-homing) |
| POTS port | • Maximum ringer equivalence number (REN): 4 • G.711A/μ, G.729a/b and G.722 encoding/decoding • T.30/T.38/G.711 fax mode • DTMF • Emergency calls (with the SIP protocol) |
| Ethernet port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s |
| Wi-Fi | • IEEE 802.11 b/g/n (2.4GHz) • IEEE 802.11 a/n/ac (5GHz) • 2 × 2 MIMO (2.4GHz&5GHz) • Antenna gain: 5 dBi • WMM/Multiple SSIDs/WPS • 2.4GHz&5GHz concurrent • Air interface rate: 300 Mbit/s (2.4GHz), 867 Mbit/s (5GHz) |
Features of ONU
To better understand its functions, here are the key features of an ONU:
Triple Play Services: Supports data, IPTV, and VoIP services, catering to the needs of both residential and commercial users.
Bidirectional Data Transmission: Receives broadcast data from the OLT while sending back user-generated data through assigned transmission windows.
Ethernet Data Buffering: Temporarily stores Ethernet data before transmitting it to the OLT, optimizing data flow.
Remote Management via OAM: Enables remote Operation, Administration, and Maintenance (OAM), allowing service providers to monitor and configure ONUs efficiently.
Security and Quality of Service (QoS): Many ONUs offer enhanced security features and Quality of Service (QoS) support, ensuring reliable performance for different applications.
Applications of ONU
RF/CATV Port: Used for connecting to cable television.
Power Interface: Provides power connectivity.
USB Port: Typically a USB 2.0 interface.
LAN Port: Supports FE (10/100BASE-T) or GE (10/100/1000BASE-T) options.
Telephone Port: Also known as POT, VoIP, Voice, or FXS port.
Optical Port: Connects to the Optical Distribution Network (ODN).
Antenna: Provides Wi-Fi connectivity, supporting 2.4 GHz Wi-Fi or dual-band 2.4 GHz/5 GHz Wi-Fi.
Where is the ONU located in FTTx?
Depending on the FTTx (Fiber to the x) technology used, the ONU can be placed in different locations. Different types of FTTx technologies include:
FTTC (Fiber to the Curb): The ONU is placed at a distribution point near the curb or in a cabinet close to user premises.
FTTB (Fiber to the Building): The ONU is installed in a communication cabinet or wiring closet inside the building.
FTTN (Fiber to the Node): The ONU is located at a remote node or access point, typically serving a neighborhood or cluster of users.
FTTH (Fiber to the Home): The ONU is placed inside the home of the end-user.
